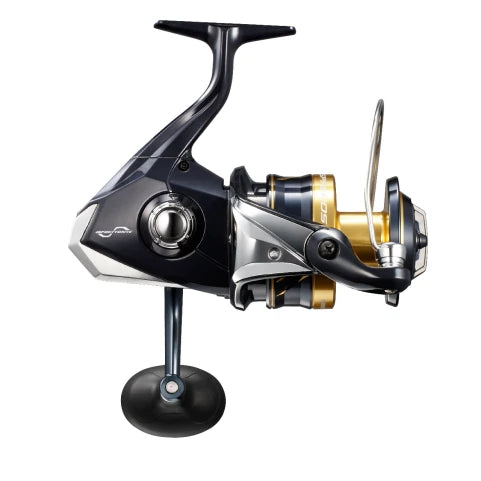

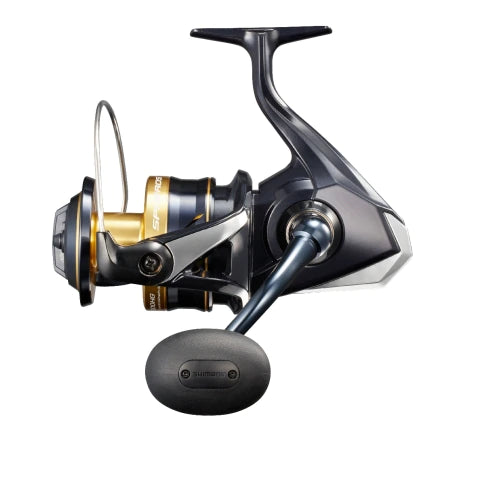

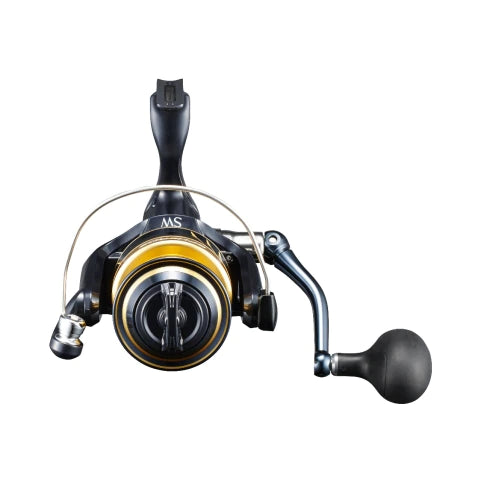

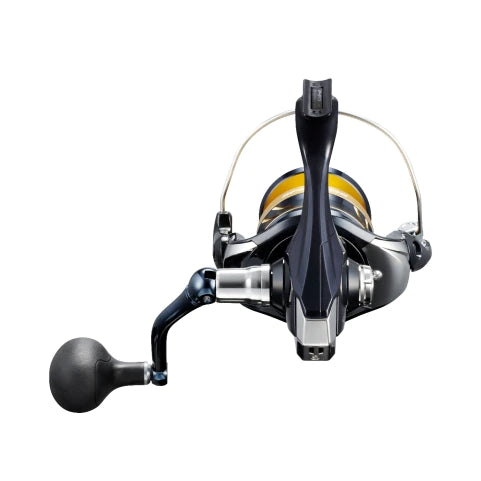

SHIMANO REDESIGNED THE SPHEROS SW SERIES TO EXCEL IN BOTH OFFSHORE AND INSHORE SALTWATER FISHING.
With Infinity Drive technology for enhanced gear support, increased winding power under load, and improved water resistance through X-Protect and X-Shield, the Spheros SW series delivers dependable performance for anglers targeting prized game fish.
Features
HAGANE GEAR
With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels.
Shimano, through the application of state-of-the-art technologies, gives anglers the long- lasting smoothness and enjoyment that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication; instead, the entire surface is calculated in minute detail by a special 3D design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the result of Shimano's endless pursuit for durability—this strength and power of forged metal continue to represent the fundamental concept of Shimano reels.
A-RB
A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing.
HAGANE BODY
The use of lightweight and rigid metals such as aluminum and magnesium firmly suppresses deflection, distortion, and torsion of the reel. This protects delicate gear meshing and enables smooth reeling.
HAGANE
HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.
X SHIP
X SHIP provides improved gear performance. Large diameter drive gear, optimally positioned pinion gear and drive gear, and two points bearings supported pinion gear produce light reeling under load.
INFINITYDRIVE
INFINITYDRIVE is a new main shaft supporting structure that improves winding torque and allows for incredibly smooth and light rotation.
| Model | GEAR RATIO | DRAG (KG) | WEIGHT (G) | PE LINE (NO.-M) | RETRIEVE PER CRANK (CM) | HANDLE LENGTH (MM) | BEARINGS |
| SPSW5000XGA | 6.2 | 10 | 445 | 2-350, 3-240, 4-170 | 105 | 65 | 4/1 |
| SPSW6000HGA | 5.7 | 10 | 450 | 2-440, 3-300, 4-210 | 103 | 65 | 4/1 |
| SPSW8000HGA | 5.6 | 13 | 665 | 3-410, 4-300, 5-250 | 107 | 75 | 4/1 |
| SPSW10000PGA | 4.9 | 12 | 675 | 4-400, 5-300, 6-250 | 102 | 75 | 4/1 |
| SPSW14000XGA | 6.2 | 12 | 680 | 6-300, 8-200, 10-165 | 134 | 80 | 4/1 |
| SPSW18000HGA | 5.7 | 18 | 920 | 5-500, 6-400, 8-300 | 129 | 85 | 4/1 |
| SPSW20000PGA | 4.4 | 18 | 930 | 5-600, 6-500, 8-350 | 104 | 85 | 4/1 |
