Lever drag specially designed for jigging. A new move in jigging strategy to challenge giant fish.

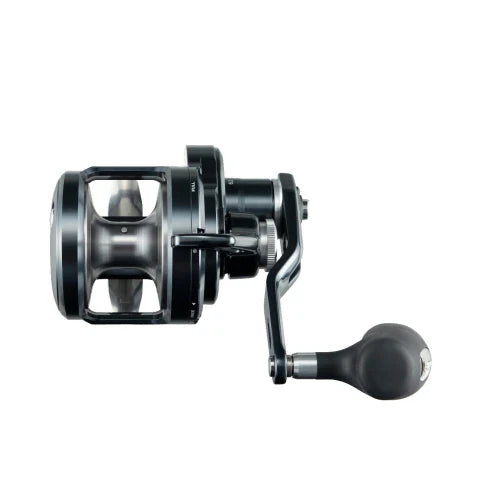

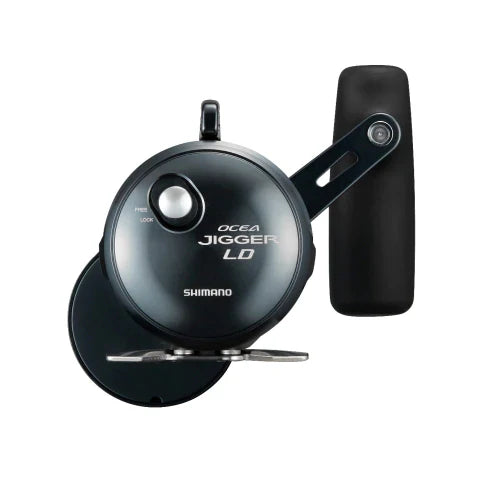

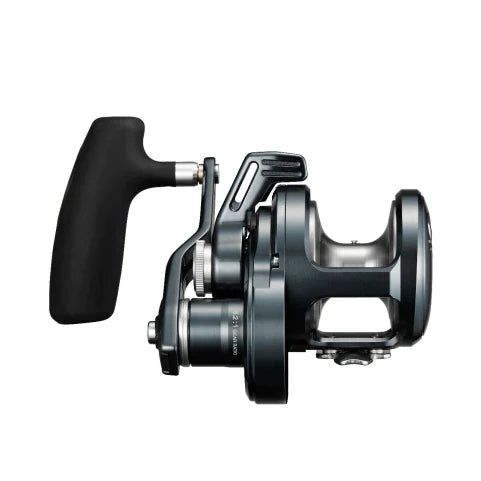

Ocea Jigger LD 2500, a game-changer in precision jigging. This lever drag reel redefines norms with its 30% lighter rotational torque and innovative double-drag structure, maximizing control during intense fights. Boasting a 20 kg drag force and compact yet powerful design, it surpasses even larger reels. Customizable with interchangeable drag cams, the Ocea Jigger LD ensures an unmatched balance of strength and yet stays palm sized. Elevate your jigging experience with this dedicated reel for giants of the deep.
Features
Technology
Hagane
HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.
Hagane Body
The use of lightweight and rigid metals such as aluminum and magnesium firmly suppresses deflection, distortion, and torsion of the reel. This protects delicate gear meshing and enables smooth reeling.
INFINITYDRIVE
INFINITYDRIVE technology is an advanced structure that produces lower friction and lighter winding. Pinion gear is supported by the spool shaft instead of the pinion gear bearing on the spool side. Rotational resistance of the gear section has been reduced without compromising gear strength
X PROTECT
X PROTECT provides high-level water resistance to the inside bearing of drive gear shaft with waterproof construction.
S COMPACT BODY
S-Compact Body provides the comfortable palming body by making the palming side plate smaller than the handle side plate.
S A-RB
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting the rotation of the bearing
Line Up
2500MG

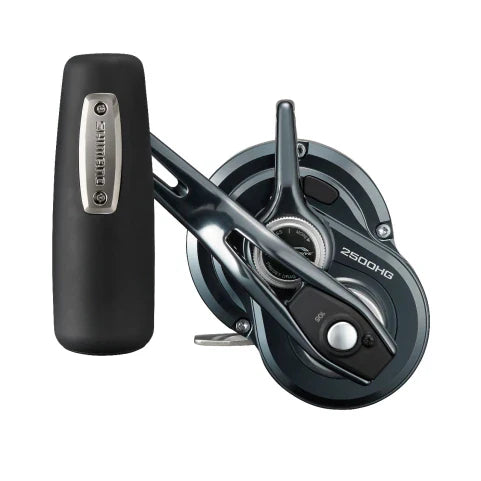

2500HG
Specification
|
MODEL |
GEAR RATIO | DRAG (KG) | WEIGHT (G) | PE LINE (NO.-M) | RETRIEVE PER CRANK (CM) | HANDLE LENGTH (MM) | BEARINGS |
| 2500MG | 5.7 | 20 | 690 | 3-670, 4-500, 5-400 | 107 | 105 | 8/1 |
| 2500HG | 6.2 | 20 | 690 | 3-670, 4-500, 5-400 | 117 | 105 | 8/1 |
