" A rock shore rod with stress-free lure operability and overwhelming fighting performance. "
DRAGGER -
DAIWA's shore jigging rod is reborn as DRAGGER. DRAGGER means "strongly pull". The fight style of shore jigging tightens the drag to the limit and floats large blue objects with the rod's charge. In this extreme game of fishing, the rod must be an absolutely reliable partner. DRAGGER is an absolute confidence product. With this in hand, I would like you to face the big game with all your might.
DAIWA's shore jigging rod is reborn as DRAGGER. DRAGGER means "strongly pull". The fight style of shore jigging tightens the drag to the limit and floats large blue objects with the rod's charge. In this extreme game of fishing, the rod must be an absolutely reliable partner. DRAGGER is an absolute confidence product. With this in hand, I would like you to face the big game with all your might.
The highest peak of shore jigging rod "BREAK THROUGH" The
ultimate rock shore rod to challenge your limits and get record fish. "BREAK THROUGH". "Stress-free lure operability" (concept 1) that allows you to comfortably move the lure all day long in any situation as a result of thoroughly working it out on site with testers to catch the biggest fish than anyone else. And "overwhelming fighting performance" (concept 2) that seeks the power to control the hooked fish and the control performance of the fish. The development concept was decided to achieve both of these at a high level. As a result, the completed rod has amazing fighting power. Open the door to extreme extreme gaming with new weapons.
ultimate rock shore rod to challenge your limits and get record fish. "BREAK THROUGH". "Stress-free lure operability" (concept 1) that allows you to comfortably move the lure all day long in any situation as a result of thoroughly working it out on site with testers to catch the biggest fish than anyone else. And "overwhelming fighting performance" (concept 2) that seeks the power to control the hooked fish and the control performance of the fish. The development concept was decided to achieve both of these at a high level. As a result, the completed rod has amazing fighting power. Open the door to extreme extreme gaming with new weapons.
Concept 1 Stress-free lure operability
The important thing in shore jigging and plugging is to constantly operate the lure in order to make a few bite chances. The main battlefield for rock shores is the rocky shore with good tides. Manipulate large plugs and jigs over 100g. With these lures, you can feel the tide and invite fish by using sharp and sometimes mild inputs. Misactions can be overlooked in an instant. This operation, which uses physical strength and nerves, is not an easy task. Using all kinds of lures in all fields, we carefully investigated the material and taper of the tip from various points of view, and investigated the smooth taper of load transfer and exquisite repulsion. This greatly improves lure operability. With the optimum repulsive force, the rod pushes the lure optimally, so the plug has reached a new level of sensation of swimming with "smoothness". In addition, miss dives are greatly reduced. The width that rusts the rod has decreased compared to conventional products, making it easier to pull the plug. In the rod dedicated to jigs, the load enters more to the front side, so the jerking feeling is lighter. In addition, by changing the tone of the tip to that of a plug rod, the swimming of the jig is moderately suppressed, and the input of the action that the green fish uses the mouth obediently is supported.
The important thing in shore jigging and plugging is to constantly operate the lure in order to make a few bite chances. The main battlefield for rock shores is the rocky shore with good tides. Manipulate large plugs and jigs over 100g. With these lures, you can feel the tide and invite fish by using sharp and sometimes mild inputs. Misactions can be overlooked in an instant. This operation, which uses physical strength and nerves, is not an easy task. Using all kinds of lures in all fields, we carefully investigated the material and taper of the tip from various points of view, and investigated the smooth taper of load transfer and exquisite repulsion. This greatly improves lure operability. With the optimum repulsive force, the rod pushes the lure optimally, so the plug has reached a new level of sensation of swimming with "smoothness". In addition, miss dives are greatly reduced. The width that rusts the rod has decreased compared to conventional products, making it easier to pull the plug. In the rod dedicated to jigs, the load enters more to the front side, so the jerking feeling is lighter. In addition, by changing the tone of the tip to that of a plug rod, the swimming of the jig is moderately suppressed, and the input of the action that the green fish uses the mouth obediently is supported.

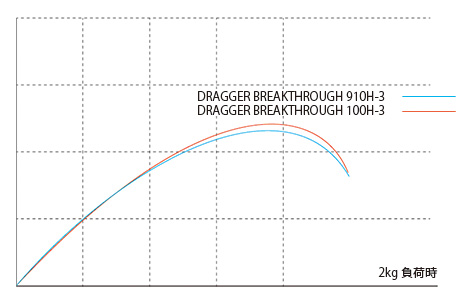

A comparison of the 910H-3, which specializes in jigs, and the 100H-3, an all-round model that mainly uses plugs. The tip of the 100H-3 is supple so that the plug is well covered with water. On the other hand, it has a taper design that allows you to pull the plug with an accurate stroke by increasing the tension from the berry to the tip.
The Jig Special 910H-3 is characterized by the fact that the jig's jerking feeling is light because the load enters the belly. Assuming a bite in a fast-flowing fishing spot or in a deep water, the bend during the fight is also slightly swung to the body so that the rod does not get stuck and can be charged. In addition, by creating a tapered section on the tip, it suppresses unnecessary action of the jig and realizes a natural lure swim.
The Jig Special 910H-3 is characterized by the fact that the jig's jerking feeling is light because the load enters the belly. Assuming a bite in a fast-flowing fishing spot or in a deep water, the bend during the fight is also slightly swung to the body so that the rod does not get stuck and can be charged. In addition, by creating a tapered section on the tip, it suppresses unnecessary action of the jig and realizes a natural lure swim.
Concept 2 In developing the overwhelming fighting performance
DRAGGER, the power rank of the shore jigging rod was significantly reviewed. However, in the rock shore rod "BREAKTHROUGH" handled by the chosen one of the advanced, the fight with the fish is just a deadly fight. In order to control large fish in an extreme fight, you need a strong butt power that will be the last stronghold. "BREAKTHROUGH" secures further rod power by making the original section thicker. As a result, it is possible to forcibly stop a violent first run, acquire initiative at the root, and smoothly overtake. It is a rod that does not give initiative to big fish, suitable for a selected rock shoreman with a body of steel.
DRAGGER, the power rank of the shore jigging rod was significantly reviewed. However, in the rock shore rod "BREAKTHROUGH" handled by the chosen one of the advanced, the fight with the fish is just a deadly fight. In order to control large fish in an extreme fight, you need a strong butt power that will be the last stronghold. "BREAKTHROUGH" secures further rod power by making the original section thicker. As a result, it is possible to forcibly stop a violent first run, acquire initiative at the root, and smoothly overtake. It is a rod that does not give initiative to big fish, suitable for a selected rock shoreman with a body of steel.

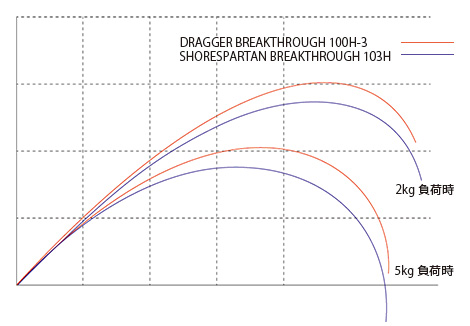

Comparison of H power rank items from the previous SHORE SPARTAN BREAKTHROUIGH and DRAGGER BREAKTHROUIGH. DRAGGER BREAKTHROUIGH has higher power. As a result, while handling plugs that are becoming larger and heavier, it is possible to handle even larger objects.
3-piece structure blanks, grips, guide settings, which we arrived at while continuing field tests,all were developed from scratch. It took two whole years. How many prototypes did you make and how many times did you go fishing to make one rod? As a result, the basic design that we arrived at in order to realize the two development concepts is a complicated design method of three pieces that combines the inro and the parallel joint. By making # 1 and # 2 an inro structure, the load transfer is smooth, the tip that realizes a lustrous and sharp lure action, and the belly that allows you to operate the plug and jig at will very naturally is completed. bottom. On the other hand, #2 and #3 adopt a joint structure. It has a strong power by making the roots thicker. As a result, long castability and strong lift power are realized. We succeeded in balancing the conflicting elements of operability and power at a high level. This photo is an example of a sample I brought to a fishing trip. This process was repeated many times, and the ideal was pursued down to the smallest detail together with the testers.
Further discerning
guide setting is also reviewed from scratch. We examined and tested from all aspects, such as the number and positions that optimally bring out the blanks' abilities, the strong line system for fighting monsters, and the trouble-free performance. Add 1, add 2..., finely raise and lower the size and carry out detailed tests. As a result, while using the MN guide with a stainless steel frame as the main, the top guide and the RV guide of the butt are equipped with a lightweight titanium frame. The balance with the blanks may be lost due to the replacement of the guide, so further blanks tests have been repeated and the setting has been refined. As a result, we have secured light operability while installing many large-diameter guides. In addition, for the jig special 910H-3, a single foot K guide is placed at the tip for even more stoic operability. The tip part is large and lightweight, and it embodies the operability that allows you to freely control the speed.
guide setting is also reviewed from scratch. We examined and tested from all aspects, such as the number and positions that optimally bring out the blanks' abilities, the strong line system for fighting monsters, and the trouble-free performance. Add 1, add 2..., finely raise and lower the size and carry out detailed tests. As a result, while using the MN guide with a stainless steel frame as the main, the top guide and the RV guide of the butt are equipped with a lightweight titanium frame. The balance with the blanks may be lost due to the replacement of the guide, so further blanks tests have been repeated and the setting has been refined. As a result, we have secured light operability while installing many large-diameter guides. In addition, for the jig special 910H-3, a single foot K guide is placed at the tip for even more stoic operability. The tip part is large and lightweight, and it embodies the operability that allows you to freely control the speed.
| Model | Recommended reel size | PE Line | target |
|---|---|---|---|
| 100MH-3 | #6000 | #2-4 | 10kg class blue-runner, black-fin seabass |
| 910H-3JS | #6000-#10000 | MAX#5 | 15kg class blue-runner |
| 100H-3 | #10000 | #3-5 | 15kg class blue-runner |
| 100HH-3 | #14000 | #4-6 | 15kg class blue-runner, tuna, GT |
| 93XH-3 | #14000-18000 | #6-8 | 20kg class blue-runner, tuna, GT |
| 83XXH-3 | #18000-#20000 | #6-10 | monster fish |
| Model | Feature |
|---|---|
| 100MH-3 |
[The ultimate control that allows you to manipulate any lure at will] Developed on the premise of using a 14-19cm diving pencil and a jig of around 60g. A basic model for inshore waters that targets 5kg class blue-runners on rocky shores and embankments. It is also suitable for use with blackfin seabass because it can handle 12cm class minnows at a high level. |
| 910H-3JS |
[Jig special that boasts overwhelming jerking lightness] Constantly explore the water and set it by feeling changes in tidal currents, jig behavior and swimming. In order to realize such aggressive game development, we have thoroughly pursued information grasping power, lightness of sharpness, and taper that moves jigs with optimal action. |
| 100H-3 |
[Sharp castability and a new sensation that the plug is slippery and wet] A power model developed on the premise of using a jig of around 100g, centering on a 19cm diving pencil. There is little water biting mistake action of the plug, and it can fight without giving in to 10kg class greens on the ground and offshore. |
| 100HH-3 |
[The water-biting feel of a slimy plug and the ease of operation of a heavyweight plug shines] A high-power model that can handle jigs weighing around 100g, centering on large diving pencils over 20cm. Equipped with blanks trained to catch big fish over 20kg. Ideal for anglers aiming for record fish of amberjack offshore. |
| 93XH-3 |
[New innovation that allows you to move the lure lightly even though it is high power and small tricks are also effective] A high power short model developed with an emphasis on both light rod work and fish controllability while aiming at large amberjack. While having amazing power, it also supports lightweight lures of 60g class. |
| 83XXH-3 |
[Control the world shore] A monster model for challenging record fish such as amberjack, amberjack, and GT. It has both overwhelming power to counter strong pulls and tenacity to follow drag control. The ultimate form of fishing rod. |
Daiwa Technology
![ESS [Expert Sense Simulation]](https://www.daiwa.com/jp/resources/fishing/item/rod/salt_rd/dragger_break_through/__icsFiles/artimage/2022/12/07/c_041214204/ESS_1.jpg "ESS [Expert Sense Simulation]")
■ ESS [Expert Sense Simulation]
Kansei Area Design System "ESS" When the rod bends, energy (restoring force) is generated to try to get up in the opposite direction. This is the "strain energy" that the deformed (distorted) blank tries to return to its original state, and is an extremely important factor that determines the performance of the rod. DAIWA has developed a system that analyzes and designs this "strain energy". In addition to clearly grasping "where is superior" and "where is lacking" numerically, it is possible to reflect the area called expert's sensibility on the rod. An innovative rod design system "ESS" that creates a rod that exceeds the ideal.
■ X45 Full Shield (= X45 Cobra Shield)
The torsion rigidity is improved by tightening the most effective outermost layer of the X45, which is the most effective X45 with carbon fibers slanted at ±45° from the tip of the blank where rod twisting is most likely to occur. Thoroughly eliminates the twisting of the rod that occurs in the basic fishing operations such as casting, action, and hooking, realizing more cast accuracy than ever before. By suppressing power loss, the original performance of the rod is brought out.
■ V-JOINT α [V-joint alpha]
High-strength materials including Nanoplus and DAIWA's unique ultra-high-precision rod design and manufacturing technology make the V-JOINT even stronger, lighter, and more beautiful.
■ HVF NANOPLUS
"High-density HVF carbon", which reduces the amount of resin and increases the density of carbon fiber instead, is the ideal material for rods that emphasize stickiness and strength. By combining them with the manufacturing method, it is possible to further increase the strength and reduce the weight.
Specifications:
| Model |
Overall length (m) |
Tip diameter/base diameter (mm) |
Number of joints (pieces) |
Close (cm) |
Weight (g) |
Lure weight (g) |
Jig weight (g) |
Applicable line PE (No.) |
Carbon content (%) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100MH-3 | 3.05 | 2.4/16.4 | 3 | 109 | 365 | 20 to 80 | 30 to 100 | 2 to 4 | 99 | ||
| 910H-3JS | 3.00 | 2.8/16.9 | 3 | 109 | 372 | - | 40 to 130 | MAX5 | 99 | ||
| 100H-3 | 3.05 | 2.8/16.9 | 3 | 109 | 375 | 30 to 100 | 40 to 130 | 3-5 | 99 | ||
| 100HH-3 | 3.05 | 2.6/17.4 | 3 | 109 | 400 | 50 to 120 | 60 to 160 | 4-6 | 99 | ||
| 93XH-3 | 2.82 | 2.6/18.1 | 3 | 101 | 408 | 60 to 160 | 80-200 | 6 to 8 | 99 | ||
| 83XXH-3 | 2.51 | 2.8/18.7 | 3 | 95 | 415 | 70 to 210 | - | 6 to 10 | 99 |
*** includes rod bag
